Our goal is to build 10s of thousands, if not millions of commuter cars that are fun to drive, extremely safe, and the most practical tool for the job of single, and occasional double-occupant trips. Good acceleration is important, as it can help one to get out of trouble in many situations, however, it is not necessary to have supercar performance. When we build production Tangos, they will be quick accelerating, as that helps make them safe and certainly more fun to drive. We will probably want to make them just a bit quicker than any Tesla, but that's just because competition is fun. The information below is just to show what's possible with the Tango design.
The T600 was designed to show the potential of an ultra-narrow commuter car. It was designed to overcome each potential objection with extreme examples of acceleration, cornering, etc. Hence, we designed it with an unprecedented amount of torque for a street car. It uses the same kind of motors as freight train locomotives, having a staring torque of over 2,000 Nm each. The combined torque of these motors, starting at zero RPM, is 4,000 Nm, the equivalent of 6 Dodge Viper V-10 engines, 8 Ferraris, or several semi truck tractors engines.

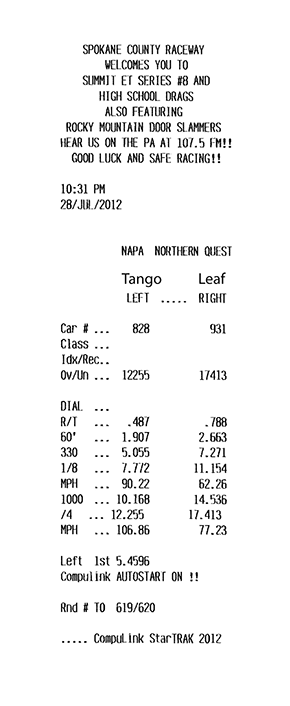

The Tango needs only one gear to go from zero to about 250 km/h because of the extreme torque these series-wound motors have. That gear, a 3:1 ratio from motors to axles, allows it to accelerate from 0 to 96.77 km/h (60 mph) in 3.2 seconds, finish the standing ¼ mile in 12.25 seconds at 172 km/h, and do a wheel stand if given enough traction. Redline on the motors in 8,000 rpm which would equate to 277 km/h.
The added benefit to using these high torque motors is that no gear shifting is necessary. It also eliminates a differential and complex gearbox, allowing the entire drive-train to fit between the rear wheels, leaving more space for the battery, hence more range. Contrary to common belief, the large motors do not use more power than small motors, unless the horsepower is used. Unlike an internal combustion engine (ICE), there is no extra friction due to size, so the motors run virtually just as efficiently as smaller ones that are doing the same job, for example driving at 100 km/h on the motorway. At higher speeds on the motorway, the Tango is actually much more efficient than the Nissan Leaf with its AC drive system. Some of this may be due, however, to the reduced wind resistance because of the Tango's smaller profile.
Although the torque is off the chart, the horsepower is not as remarkable. Horsepower = Torque (in ft-lbs) times RPM divided by 5,252. These series-wound traction motors start out at their highest torque which then diminishes with RPM. The motor controller can put 2,000 amps at over 300 volts to the motors. That's 600 kW = 805 hp. The motors, however, won't accept this current at higher RPM. To remedy this problem of back EMF, which is the increasing resistance developed by the spinning motors, we have a shift from a series connection to the motors, to parallel. This gives a boost, much like a passing gear when going over 100 km/h and needing to pass a car quickly.
The torque at the motors is proven in the video below. There you can see the front wheels lifting off of the ground. Simple high-school level physics will allow one to calculate the torque based on these facts. The Tango weighs 1,514 kg. There is a 43% front and 57% rear weight bias. From that you can calculate that it would take 12,000 Nm on a torque wrench attached to the rear axle in order to lift the front wheels off of the ground. With a 3:1 gear ratio it has to have 4,000 Nm at the motors. When that happened on well-prepared drag strip, that gave the Tango enough traction not to spin the tires, the motor torque was proven.
13-second video showing front wheels lifting off of the track, proving 4,000 Nm (3,000 ft-lbs) of torque from the motors, as they are linked by a 3:1 gear ratio to the axles.
